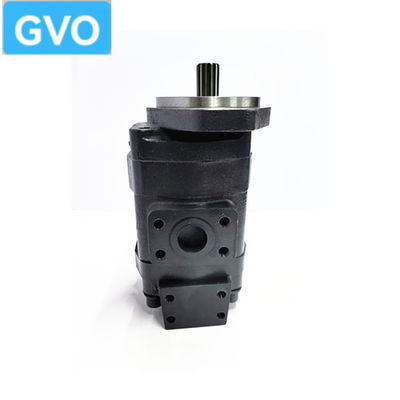

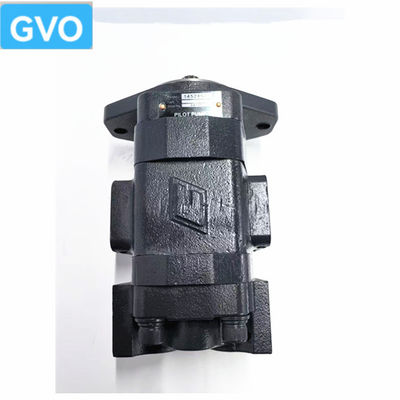

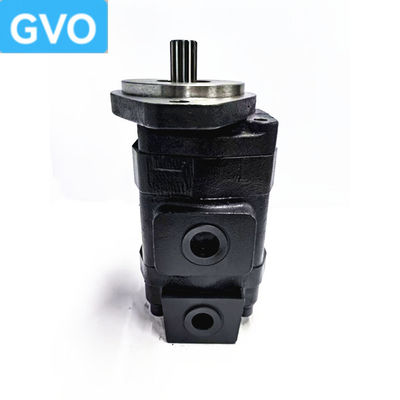

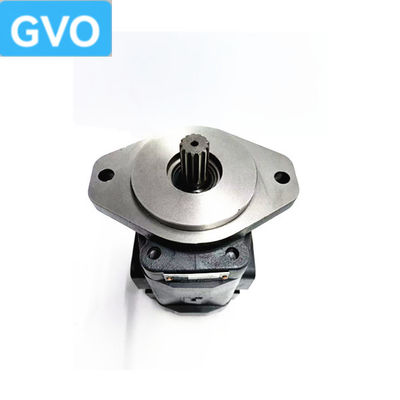

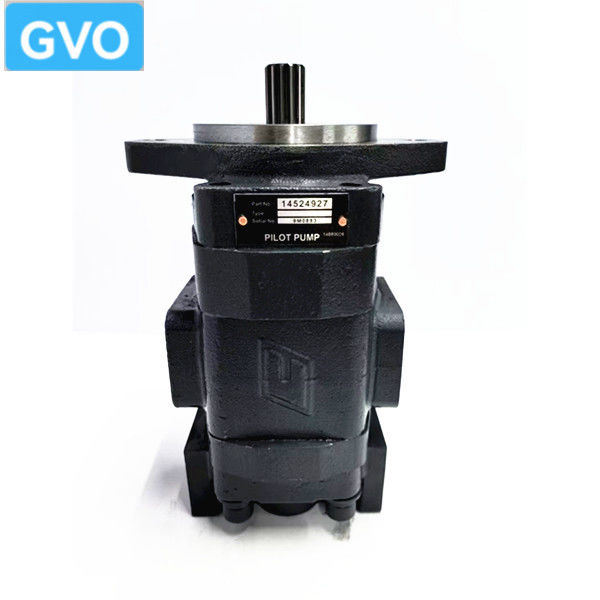

14524927 Excavator Volvo 140 hydraulic pump gear pump pilot pump
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GVO |
| Model Number: | SGP2A55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable price |
| Packaging Details: | Export standard packaging |
| Delivery Time: | Within 2-7 Days After Receiving Payment |
| Payment Terms: | T/T，Western Union，Ali payment，L/C,Paypal |
| Supply Ability: | 480PCS |
|
Detail Information |
|||
| Model Name: | EC140 | Part Number: | 14524927 |
|---|---|---|---|
| Condition: | 100%new | Appliion: | EXCAVATOR |
| Size: | Standard Size/custom Size | After-sales Service: | Online Suppor |
| Quality: | High Quality | APPLICABLE INDUSTRIES: | Building Material Shops, Machinery Repair Shops, Retail, Construction Works |
| Highlight: | Excavator Volvo 140 Hydraulic Pump Gear Pump Pilot Pump 14524927 | ||
Product Description
Excavator Volvo 140 hydraulic pump gear pump pilot pump 14524927
| Brand | GVO |
| Appliion | hydraulic pump gear pump |
| Model No. | VOLVO140 |
| Condition |
100% New
|
| Size | Standard |
| Package | As customer's requirment |
| Adavatages | High Quality |
| Factory Price | |
| Adequate inventory |
307002-4472 ZEXEL GEAR PUMP 9217996
307012-8140 ZEXEL 94123Z
307012-3000 ZEXEL
307012-8020 ZEXEL 12+12+7.5 cc/rev
307002-3480 ZEXEL GEAR PUMP 9217990, 74409A, 68761-61170
307001-3420 ZEXEL Hitachi GEAR PUMP 9217979
307002-4671 ZEXEL GEAR PUMP 9218006, 66415 88209, RD30161120
307002-4210 ZEXEL GEAR PUMP Hitachi 9217993
307002-5540 ZEXEL GEAR PUMP 9218012
307012-1311 ZEXEL GEAR PUMP 9226347, 74708H
307012-1090 ZEXEL GEAR PUMP 9218035 Kubota KH60, KH66, KX71
307012-1100, 307012-1021 ZEXEL GEAR PUMP 9218028, 9621810752, 74918H
307012-1091, 307012-1090 ZEXEL GEAR PUMP 9218029 Kubota KH60, KH66, KX71
0510565058, 94126A 68741 61110 94508S
307012-8200 ZEXEL GEAR PUMP 9218043 KUBOTA KH60, KX41
0510365013, 307012-8201, 9218043, 38730, 3070128201, AZPFFF-11-005/005/004RXB202020MB, 222P5/5/4/4XB365013C
Gear pump is a common type of hydraulic pump in hydraulic system. Its structure and working principle are as follows:
Structural composition
Gear pump is mainly composed of the following core components:
- A pair of meshing gears: divided into driving gear (driven by power source) and driven gear (meshing and rotating with driving gear).
- Pump body: The housing that holds the gear, with a cavity inside that matches the gear shape to ensure that the gap between the gear and the pump body is minimal when the gear rotates.
- End cover: Installed on both sides of the pump body, sealing the pump cavity and supporting the gear shaft at the same time.
- Gear shaft: Connect the gear with the power source (driving shaft) or support the driven gear to ensure stable rotation of the gear.
- Sealing device: such as sealing ring, to prevent hydraulic oil from leaking from the gap between the pump body and the end cover.
Working principle
Gear pump realizes oil suction and oil pressure based on "volume change". The specific process is as follows:
1. Oil suction process: When the driving gear rotates, it drives the driven gear to mesh and rotate in the opposite direction. On one side of the gear meshing point (oil suction chamber), the gear tooth groove gradually disengages, the volume between the teeth increases, and a local vacuum is formed. Under the action of atmospheric pressure, the hydraulic oil in the oil tank enters the oil suction chamber through the oil suction pipe and fills the tooth groove.
2. Oil pressure process: The gear continues to rotate, and the hydraulic oil in the tooth groove is brought to the other side of the meshing point (oil pressure chamber). At this time, the gear gradually enters meshing, the volume between the teeth decreases, and the hydraulic oil is squeezed out of the oil pressure chamber and transported to the hydraulic system through the oil pipe to realize the transmission of pressure energy.
The core is to use the periodic change of the volume between the teeth when the gears are meshing (increase → oil suction, decrease → oil pressure) to complete the suction and discharge of hydraulic oil and provide power for the hydraulic system.
FAQ:
1.What do you mainly produce?
A;Our main business hydraulic Spare Parts,safety valve,Gear pump,hydraulic pump,control valve,Trave Motor Assy,swing motor,Seal kit, Electric parts,solenoid valve, engine assembly.etc.
2, Do you have stock for the goods?
A;We have plenty stock for many items in the warehouse.
3. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
4.I know only the excavator model, but can not offer parts No., what should I do ?
A;If possible, you can send us the old photo, nameplate or the size for reference.
5.can I order one of our samples for testing first?
A: Of course!
Welcome to contact us for Inquiry & orde
If you are not sure about the model and part number - please contact us via WhatsApp
