Working principle of Sx-12 distribution valve inlet valve block

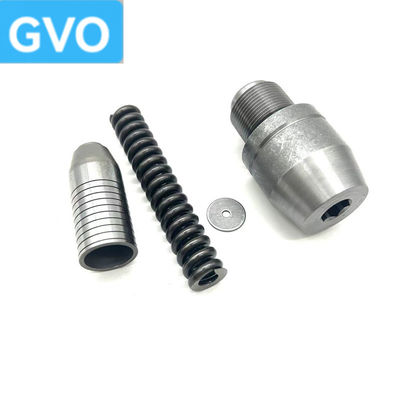

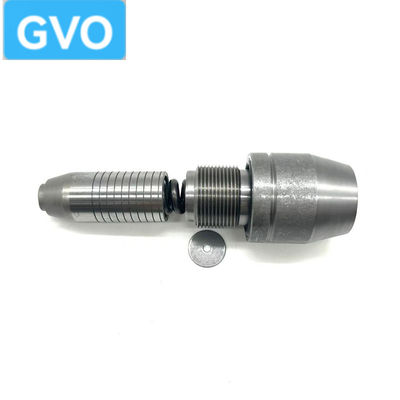

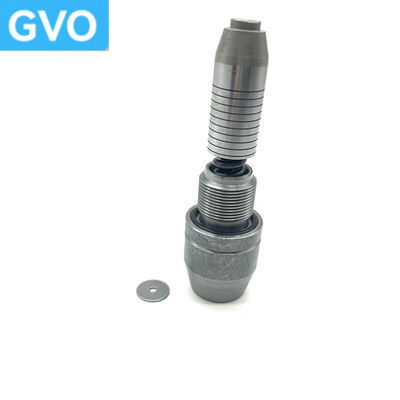

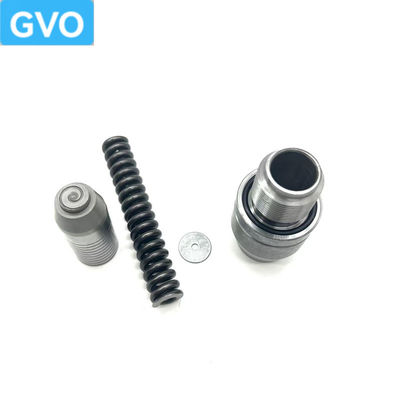

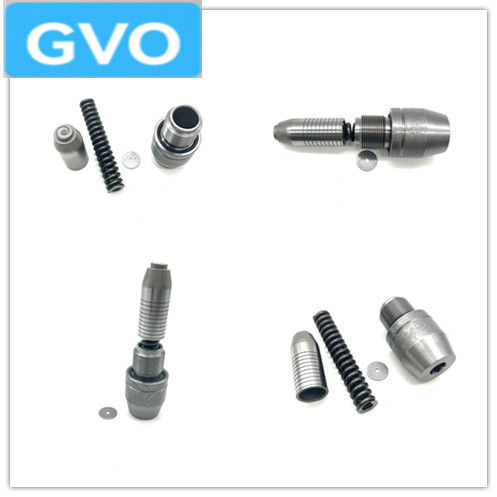

   There are main safety valve, compensating pressure relief valve and mid-position unloading valve on the inlet valve block. The main safety valve is used to limit the maximum pressure of the system. When the system pressure exceeds 24.5MPa, the main safety valve opens and overflows back to the oil tank to prevent system overload. When the compensating pressure relief valve is in the middle position of the reversing valve, the compensating pressure oil is returned through its throttle hole to achieve mid-position unloading energy saving. One end of the mid-position unloading valve is acted on by the oil pump pressure oil, and the other end is acted on by the compensating pressure Ls and spring force. When the reversing valve is in the middle position, Ls=0, the oil pump pressure oil overcomes the spring force to open this valve, so that the oil returns to the oil tank, and the oil pump is unloaded at low pressure; when the reversing valve is actuated, the Ls pressure generated pushes the valve core, cuts off the passage between the oil inlet and the oil return port, and the pressure oil of the hydraulic pump supplies oil to the multi-way valve inlet valve block to provide pressure oil for the actuator.

      Sx - 12 distribution valve inlet valve block working pressure

- Main safety valve set pressure: control system (boom, bucket, dipper arm, bulldozer and walking)

     Function of Sx-12 distribution valve inlet valve block

- Protect system safety: The main safety valve protects hydraulic components and pipelines from damage caused by excessive pressure by setting the maximum working pressure of the system, preventing the system from malfunctioning or being damaged due to excessive pressure.

.Advantages of our products

1 .Exquisite workmanship, for you to win the marke

2 .beautiful appearance, for you to win customer recognition

3 .to provide you with one-stop excavator parts procurement

4.long warranty, for your after-sales worry

FAQ:
1.What do you mainly produce?

A;Our main business hydraulic Spare Parts,safety valve,Gear pump,hydraulic pump,control valve,Trave Motor Assy,swing motor,Seal kit, Electric parts,solenoid valve, engine assembly.etc.

2, Do you have stock for the goods?

A;We have plenty stock for many items in the warehouse.

3. Do you test all your goods before delivery?

A: Yes, we have a 100% test before delivery.

4.I know only the excavator model, but can not offer parts No., what should I do ?

A;If possible, you can send us the old photo, nameplate or the size for reference.

5.can I order one of our samples for testing first?

A: Of course!

Welcome to contact us for Inquiry & orde

If you are not sure about the model and part number - please contact us via WhatsApp
